Crane end carriage motor

Description

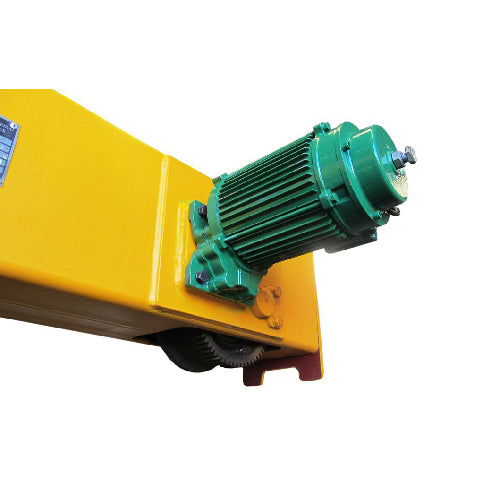

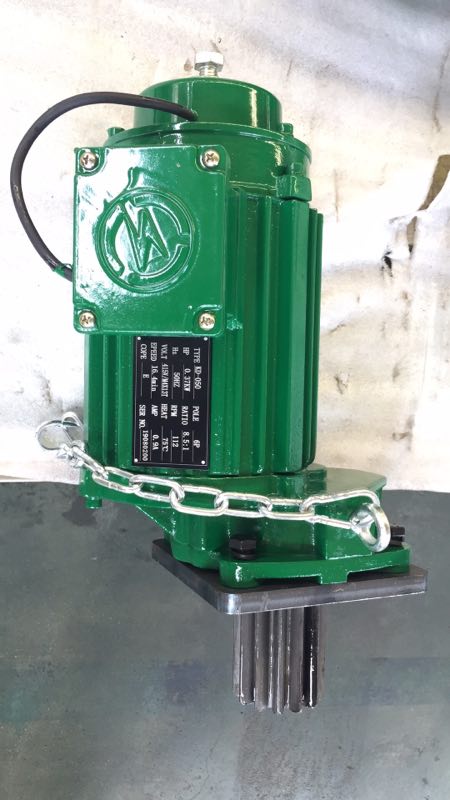

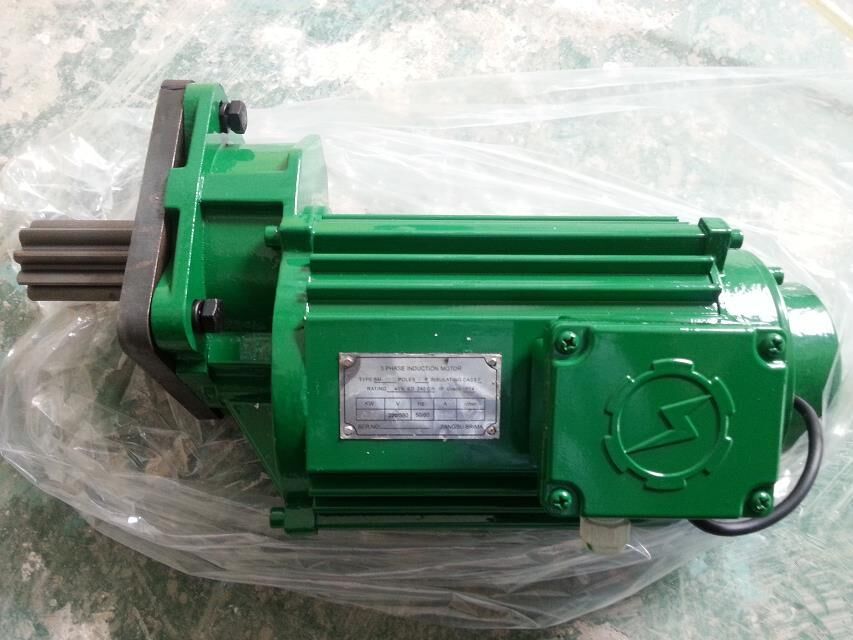

End carriage motor

End carriage motor is very important part for the crane moving. It can be customized according to different specifications of crane no matter single girder crane, double girder crane. Special request for the power supply, with buffer or without buffer, poles, output modules, voltage and so on. Usually the motor is three-in-one motor. We can also equip European type motor like ABM, SEW etc. to the crane end carriage.

Features:

  • Made of high quality casting iron by high precision CNC lathe processing.
  • High quality gear has been carefully calibrated and ground, the safety factor is more than 5times.
  • Easy radiation of heat, high pressure resistant, low noisy, low current with small volume, high output power for high frequency use.
  • Electric magnetic brake device with high wear-resisting brake, strong power, long service life and high security.

Technical Data

Model Power(kw) Poles Output module Reduction ratio Reduction speed(r/min） Voltage Weight(kg) Length(mm)
50Hz 60Hz
BM-030        No buffer 0.25 4P M3            M3.5                        M4 10:1 150 180 3P,380V 11 368
0.25 6P 90 120
0.4 4P 150 180
BM-050        with buffer 0.4 4P M3            M3.5                        M4 8.5:1 176 210 3P,380V 16 394
0.37 6P 115 140
BM-050QX        with buffer 0.75 4P 176 210
0.6 6P 115 140
BM-100        with buffer 0.75 4P M3            M3.5                        M4                    M5 7.7:1 188 228 3P,380V 25 442
0.6 6P 123 148
0.4/0.13 4P 188/62 228/75
BM-100QX        with buffer 1.1 4P 188 228
0.75 6P 123 148
BM-150        with buffer 1.1 4P M3.5                        M4                    M5 13:1 114 135 3P,380V 47 561
0.75 6P 67 92
0.6/0.2 4/12P 114/33 137/45
BM-150QX        with buffer 1.5 4P 114 135
1.1 6P 67 92
BM-200        with buffer 1.5 4P M4                    M5                 M6 16:1 92 110 3P,380V 66 627
1.1 4P 92 110
1.1 6P 61 73
0.75/0.25 4/12P 92/30 110/36
BM-200QX        with buffer 2.2 4P 92 110
1.5 6P 61 73
BM-300        with buffer 2.2 4P M5                 M6 16:1 92 110 3P,380V 82 645
1.5 6P 61 73
1.5/0.5 4/12P 92/30 110/30
